Valves
Process and project valves supplied to specification
Stock statusProject supply
Typical lead timeStock items 1 - 2 weeks; project packages quoted on enquiry

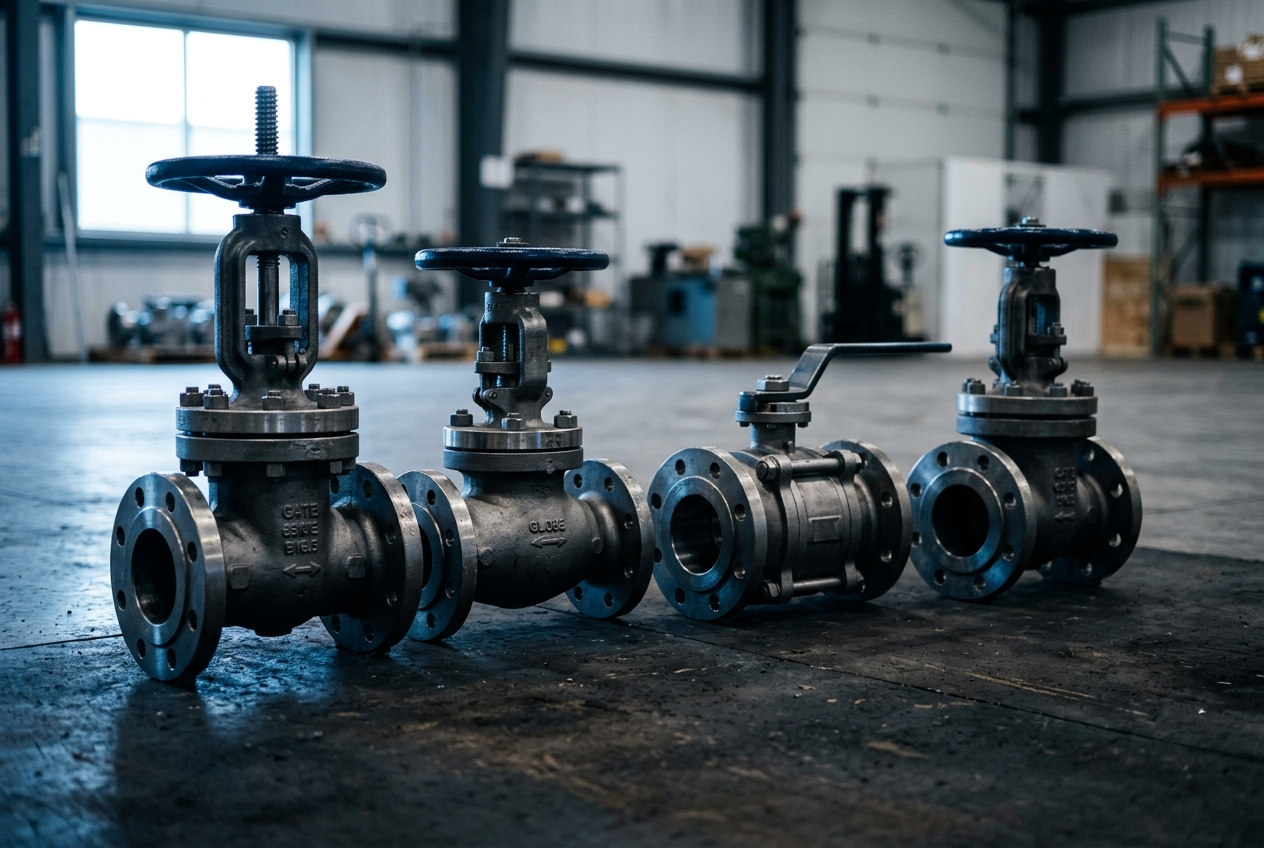

Industrial valves for process and project applications, supplied against specifications, datasheets and project requirements. We work from your valve datasheet or line list and quote on body material, trim, pressure class, end connection, actuation and testing, with material certification and inspection release notes on every shipment.
- Quoted directly from your valve datasheet or line list
- Body, trim and actuation matched to the service conditions
- Material certification, test reports and inspection release on every shipment
- Project consolidation so a full valve package ships together
Types & configurations
| Type | Specification |
|---|---|
| Gate valves | Cast / forged body, API 600 and API 602, Class 150 - 2500, flanged, butt-weld or socket-weld ends |
| Globe valves | Throttling service, BS 1873 / API 623, Class 150 - 1500, bolted bonnet, OS&Y |
| Ball valves | Floating and trunnion mounted, API 6D / API 608, full and reduced bore, fire-safe to API 607 |
| Butterfly valves | Wafer, lug and double-flanged, concentric, double and triple offset, API 609 / EN 593 |
| Check valves | Swing, lift, dual-plate and axial, API 594 / BS 1868, Class 150 - 900 |
| Knife gate & slurry valves | Mining and tailings duty, wafer and through-going blade, hardened or rubber-lined seats |
| Control & on-off actuation | Manual, gear-operated, pneumatic, electric and hydraulic actuators with limit switches and SIL options |
Specifications
| Property | Value |
|---|---|
| Body materials | Carbon steel (WCB / A105), stainless (CF8M / F316), duplex (F51 / F55), nickel alloys, bronze |
| Pressure classes | Class 150, 300, 600, 900, 1500, 2500 / PN 16 - PN 420 |
| Size range | 1/2" to 48" (DN 15 - DN 1200), larger on project enquiry |
| Testing | Hydrostatic shell and seat, API 598, fugitive emission ISO 15848, cryogenic and fire-safe on request |
| Documentation | EN 10204 3.1 material certificates, test reports, NACE MR0175 / ISO 15156 where specified |
Typical applications
Oil and gas process lines and manifolds
Refinery and petrochemical isolation duty
Water treatment and desalination plant
Mining slurry, tailings and process water
Power and district cooling plant rooms
EPC project packages and line lists
